Spontaneous emission of TLS: TCP socket¶
Here, we introduce the two-level system (TLS) spontaneous emission tutorial using maxwelllink.Molecule and a TCP socket.
1. Setting up the socket communication layer¶
Using the TCP socket requires setting the hostname and port number. On a local machine, we can use the helper function get_available_host_port() from MaxwellLink to obtain these two pieces of information. Then, we initialize a SocketHub instance to provide the socket communication in MaxwellLink.
[1]:
import numpy as np
import maxwelllink as mxl
from maxwelllink import sockets as mxs
try:
import meep as mp
except ImportError as exc:
raise RuntimeError(
"Meep is required for this tutorial."
"Install via conda: conda install -c conda-forge pymeep=*=mpi_mpich_*"
) from exc
host, port = mxs.get_available_host_port()
hub = mxl.SocketHub(host=host, port=port, timeout=10.0, latency=1e-5)
print(f"SocketHub listening on {host}:{port}")
Using MPI version 4.1, 1 processes
SocketHub listening on 127.0.0.1:50087
Before the simulation, users can understand the units system in MEEP with the following built-in function:
[2]:
# or use: mxl.meep_units_helper(length_units_nm=2.9979E+01)
mxl.meep_units_helper(time_units_fs=0.1)
Now let's take a moment to understand the Meep unit system based on your provided units:
Given that you have specified:
- Time unit: 0.1 fs
By further assuming the MEEP simulation resolution is 10 pixels per length unit, we can derive the following Meep units:
######### MaxwellLink Units Helper #########
MEEP uses its own units system, which is based on the speed of light in vacuum (c=1),
the permittivity of free space (epsilon_0=1), and the permeability of free space (mu_0=1).
To couple MEEP with molecular dynamics, we set [c] = [epsilon_0] = [mu_0] = [hbar] = 1.
By further defining the time unit or length unit, we can fix the units system of MEEP (mu).
- Time [t]: 1 mu = 1.0000E-01 fs = 4.1341E+00 a.u.
- Length [x]: 1 mu = 2.9979E+01 nm
- EM wavelength of 1 mu, angular frequency omega = 2pi mu = 4.1375E+01 eV = 3.3371E+05 cm-1 = 1.5205E+00 a.u.
- Note that sources and dielectrics defined in MEEP use rotational frequency (f=omega/2pi),
- so probabably we need covert 1 eV photon energy to rotational frequency f = 2.4169E-02 mu
- Electric field [E]: 1 mu = 6.6486E+07 V/m = 1.2930E-04 a.u.
Given the simulation resolution = 10,
- FDTD dt = 5.0000E-02 mu (0.5/resolution) = 5.0000E-03 fs
- FDTD dx = 1.0000E-01 mu (1.0/resolution) = 2.9979E+00 nm
Hope this helps!
############################################
2. Bind Molecule and EM solver to the SocketHub¶
Then, we create a Molecule instance to define the information of this molecule in the EM simulation environment, including the center, size, sigma (width of the molecular polarization distribution), and dimensions.
We also need to setup the EM solver (MEEP) using mxl.MeepSimulation. This class is a wrapper of the meep.Simulation object with extended parameters for MaxwellLink.
[3]:
molecule = mxl.Molecule(
hub=hub,
center=mp.Vector3(0, 0, 0),
size=mp.Vector3(1, 1, 1),
sigma=0.1,
dimensions=2,
)
sim = mxl.MeepSimulation(
hub=hub,
molecules=[molecule],
cell_size=mp.Vector3(8, 8, 0),
boundary_layers=[mp.PML(3.0)],
resolution=10,
# fix a units system
time_units_fs=0.1,
)
[Init Molecule] Under socket mode, registered molecule with ID 0
######### MaxwellLink Units Helper #########
MEEP uses its own units system, which is based on the speed of light in vacuum (c=1),
the permittivity of free space (epsilon_0=1), and the permeability of free space (mu_0=1).
To couple MEEP with molecular dynamics, we set [c] = [epsilon_0] = [mu_0] = [hbar] = 1.
By further defining the time unit or length unit, we can fix the units system of MEEP (mu).
- Time [t]: 1 mu = 1.0000E-01 fs = 4.1341E+00 a.u.
- Length [x]: 1 mu = 2.9979E+01 nm
- EM wavelength of 1 mu, angular frequency omega = 2pi mu = 4.1375E+01 eV = 3.3371E+05 cm-1 = 1.5205E+00 a.u.
- Note that sources and dielectrics defined in MEEP use rotational frequency (f=omega/2pi),
- so probabably we need covert 1 eV photon energy to rotational frequency f = 2.4169E-02 mu
- Electric field [E]: 1 mu = 6.6486E+07 V/m = 1.2930E-04 a.u.
Given the simulation resolution = 10,
- FDTD dt = 5.0000E-02 mu (0.5/resolution) = 5.0000E-03 fs
- FDTD dx = 1.0000E-01 mu (1.0/resolution) = 2.9979E+00 nm
Hope this helps!
############################################
3. Python way to launch mxl_driver on a separate terminal¶
Generally, using the Socket Interface requires launching the EM simulation in one terminal and then starting the molecular driver simulation in a separate terminal. To avoid opening a second terminal, below we introduce a Python helper function launch_tls_driver(...), which will launch mxl_driver from Python (so we can stay within this notebook to finish this tutorial).
Here, we set the TLS starting at the initial excited-state population of 1e-4.
Immediately after launching this driver in the background, we run the simulation using sim.run(...). This function is a wrapper of the meep.Simulation.run(...) function, which can accept user-defined step functions.
[4]:
import shlex
import shutil
import subprocess
import time
def launch_tls_driver(host: str, port: int, sleep_time: float = 0.5):
executable = shutil.which('mxl_driver')
if executable is None:
raise RuntimeError('mxl_driver executable not found in PATH.')
cmd = (
f"{executable} --model tls --address {host} --port {port}"
f' --param "omega=0.242, mu12=187, orientation=2, pe_initial=1e-4"'
)
print('Launching TLS driver via subprocess...')
print('If you prefer to run it manually, execute:')
print(' ' + cmd)
argv = shlex.split(cmd)
proc = subprocess.Popen(argv)
time.sleep(sleep_time)
return proc
launch_tls_driver(host, port)
sim.run(until=400)
Launching TLS driver via subprocess...
If you prefer to run it manually, execute:
/opt/homebrew/Caskroom/miniconda/base/envs/mxl/bin/mxl_driver --model tls --address 127.0.0.1 --port 50087 --param "omega=0.242, mu12=187, orientation=2, pe_initial=1e-4"
-----------
Initializing structure...
time for choose_chunkdivision = 6e-05 s
Working in 2D dimensions.
Computational cell is 8 x 8 x 0 with resolution 10
time for set_epsilon = 0.001874 s
-----------
[SocketHub] CONNECTED: mol 0 <- 127.0.0.1:50088
[initialization] Time step in atomic units: 0.20670686667500004
[initialization] Assigned a molecular ID: 0
init TLSModel with dt = 0.206707 a.u., molecule ID = 0
[initialization] Finished initialization for molecular ID: 0
run 0 finished at t = 400.0 (8000 timesteps)
Received STOP, exiting
[SocketHub] DISCONNECTED: mol 0 from 127.0.0.1:50088
4. Retrieve molecular simulation data¶
After the simulation, we can retrieve molecular simulation data from molecule.extra, a Python dictionary which stores the molecular information sent from the driver code at each step of the simulation.
[5]:
# users can also use molecule.additional_data_history to access the time-resolved data recorded during the simulation,
# population = np.array([entry["Pe"] for entry in molecule.additional_data_history])
# time_au = np.array([entry["time_au"] for entry in molecule.additional_data_history])
# but here we demonstrate the use of molecule.extra which is more convenient for post-processing and plotting.
population = molecule.extra["Pe"]
time_au = molecule.extra["time_au"]
print(f"Collected {population.size} samples.")
Collected 8001 samples.
5. Compare with the Analytical Golden-Rule Decay¶
Finally, we can compare this numerical simulation with analytical golden-rule rate calculations, with the 2D spontaneus emission in vacuum as:
\[k_{\rm {FGR}} = \frac{|\mu_{12}|^2 \omega^2}{2\hbar\epsilon_0 c^2}\]
The corresponding TLS excited-state population decay dynamics obey:
\[P_{\rm e}^{\rm {QM}}(t) = P_{\rm e}(0) e^{-k_{\rm{FGR}} t}\]
When the EM field is described entirely classically, more than half a century ago, Jaynes and collaborators (https://ieeexplore.ieee.org/document/1443594) calculated the semiclassical spontaneous emission rate. More recently, we have also reproduced this semiclassical excited-state population decay (https://doi.org/10.1103/PhysRevA.97.032105):
\[P_{\rm e}^{\rm {sc}}(t) = \frac{e^{-k_{\rm{FGR}} t}}{e^{-k_{\rm{FGR}} t} + \frac{1 - P_{\rm e}(0) }{P_{\rm e}(0) }}\]
When \(P_{\rm e}(0)\rightarrow 0\), the semiclassical decay dynamics exactly agree with the quantum correspondance \(P_{\rm e}^{\rm {QM}}(t)\).

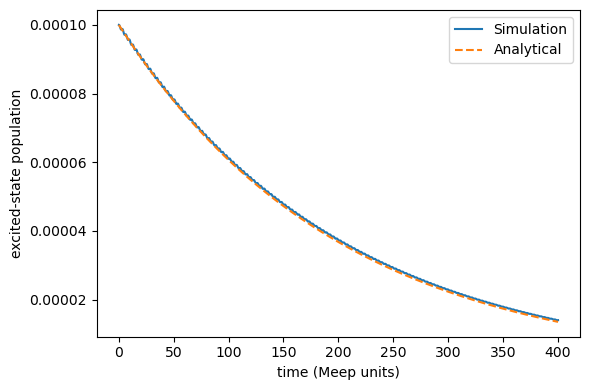

As shown below, using \(P_{\rm e}(0)= 10^{-4}\), our semiclassical simulation exactly reproduces the quantum golden-rule decay.
[6]:
time_fs = time_au * 0.02418884254
time_meep = time_fs / 0.1
initial = population[0]
dipole_moment = 0.1 # meep units of mu12
frequency = 1.0 # meep units of omega
# analytical golden-rule decay rate
gamma = dipole_moment**2 * frequency**2 / 2.0
# simple exponential decay reference
reference = initial * np.exp(-time_meep * gamma)
# below is a more accurate reference which works under any initial population
#reference = np.exp(-time_meep * gamma) / (
# np.exp(-time_meep * gamma) + (1.0 - initial) / initial
#)
std_rel = np.std(population - reference) / initial
max_rel = np.max(np.abs(population - reference)) / initial
print(f"std_dev={std_rel:.3e}, max_abs_diff={max_rel:.3e}")
import matplotlib.pyplot as plt
plt.figure(figsize=(6, 4))
plt.plot(time_meep, population, label="Simulation")
plt.plot(time_meep, reference, label="Analytical", linestyle="--")
plt.xlabel("time (Meep units)")
plt.ylabel("excited-state population")
plt.legend()
plt.tight_layout()
plt.show()
std_dev=2.012e-03, max_abs_diff=7.928e-03
6. Spontaneous emission in 3D vacuum¶
We next extend the above calculation to 3D vacuum. Here, we will use polarization_type="transverse" for the molecular polarization distribution, so that the spontaneous emission decay becomes smooth in 3D.
As in the 2D calculation, we first create a new TCP SocketHub. Then, we bind a 3D Molecule and a 3D Meep simulation to this hub.
[7]:
host_3d, port_3d = mxs.get_available_host_port()
hub_3d = mxl.SocketHub(
host=host_3d, port=port_3d, timeout=10.0, latency=1e-5
)
molecule_3d = mxl.Molecule(
hub=hub_3d,
center=mp.Vector3(0, 0, 0),
size=mp.Vector3(1, 1, 1),
sigma=0.1,
dimensions=3,
resolution=10,
polarization_type="transverse",
)
sim_3d = mxl.MeepSimulation(
hub=hub_3d,
molecules=[molecule_3d],
cell_size=mp.Vector3(3, 3, 3),
boundary_layers=[mp.PML(1.0)],
resolution=10,
time_units_fs=0.1,
)
print(f"3D SocketHub listening on {host_3d}:{port_3d}")
[Init Molecule] Under socket mode, registered molecule with ID 0
######### MaxwellLink Units Helper #########
MEEP uses its own units system, which is based on the speed of light in vacuum (c=1),
the permittivity of free space (epsilon_0=1), and the permeability of free space (mu_0=1).
To couple MEEP with molecular dynamics, we set [c] = [epsilon_0] = [mu_0] = [hbar] = 1.
By further defining the time unit or length unit, we can fix the units system of MEEP (mu).
- Time [t]: 1 mu = 1.0000E-01 fs = 4.1341E+00 a.u.
- Length [x]: 1 mu = 2.9979E+01 nm
- EM wavelength of 1 mu, angular frequency omega = 2pi mu = 4.1375E+01 eV = 3.3371E+05 cm-1 = 1.5205E+00 a.u.
- Note that sources and dielectrics defined in MEEP use rotational frequency (f=omega/2pi),
- so probabably we need covert 1 eV photon energy to rotational frequency f = 2.4169E-02 mu
- Electric field [E]: 1 mu = 6.6486E+07 V/m = 1.2930E-04 a.u.
Given the simulation resolution = 10,
- FDTD dt = 5.0000E-02 mu (0.5/resolution) = 5.0000E-03 fs
- FDTD dx = 1.0000E-01 mu (1.0/resolution) = 2.9979E+00 nm
Hope this helps!
############################################
3D SocketHub listening on 127.0.0.1:50090
We then launch a new TLS driver for the 3D calculation. The transition dipole is oriented along the \(z\) direction (orientation=2).
[8]:
def launch_tls_driver_3d(host, port, sleep_time=0.5):
executable = shutil.which("mxl_driver")
if executable is None:
raise RuntimeError("mxl_driver executable not found in PATH.")
cmd = (
f"{executable} --model tls --address {host} --port {port}"
f' --param "omega=0.484, mu12=187, orientation=2, pe_initial=0.1"'
)
print("Launching TLS driver via subprocess...")
print(" " + cmd)
proc = subprocess.Popen(shlex.split(cmd))
time.sleep(sleep_time)
return proc
launch_tls_driver_3d(host_3d, port_3d)
sim_3d.run(until=400)
time_au_3d = np.real(molecule_3d.extra["time_au"])
population_3d = np.real(molecule_3d.extra["Pe"])
Launching TLS driver via subprocess...
/opt/homebrew/Caskroom/miniconda/base/envs/mxl/bin/mxl_driver --model tls --address 127.0.0.1 --port 50090 --param "omega=0.484, mu12=187, orientation=2, pe_initial=0.1"
-----------
Initializing structure...
time for choose_chunkdivision = 0.000124 s
Working in 3D dimensions.
Computational cell is 3 x 3 x 3 with resolution 10
time for set_epsilon = 0.015205 s
-----------
[initialization] Time step in atomic units: 0.20670686667500004
[initialization] Assigned a molecular ID:[SocketHub] CONNECTED: mol 0 <- 127.0.0.1:50091
0
init TLSModel with dt = 0.206707 a.u., molecule ID = 0
[initialization] Finished initialization for molecular ID: 0
Meep progress: 128.1/400.0 = 32.0% done in 4.0s, 8.5s to go
on time step 3380 (time=169), 0.00118365 s/step
Meep progress: 299.7/400.0 = 74.9% done in 8.0s, 2.7s to go
on time step 6796 (time=339.8), 0.00117129 s/step
run 0 finished at t = 400.0 (8000 timesteps)
Received STOP, exiting
[SocketHub] DISCONNECTED: mol 0 from 127.0.0.1:50091

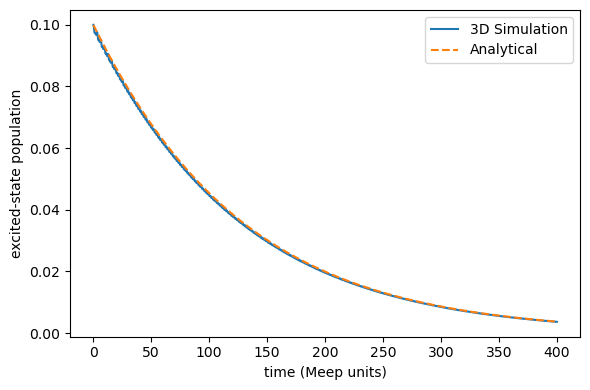

7. Compare the 3D calculation with the Golden-Rule Decay¶
In the same dimensionless Meep units used for the 2D comparison, the 3D vacuum golden-rule rate is (in MEEP units)
\[k_{\rm 3D}=\frac{|\mu_{12}|^2\omega^3}{3\pi}.\]
[9]:
time_fs_3d = time_au_3d * 0.02418884254
time_meep_3d = time_fs_3d / 0.1
initial_3d = population_3d[0]
dipole_moment_3d = 0.1
frequency_3d = 2.0
gamma_3d = dipole_moment_3d**2 * frequency_3d**3 / (3.0 * np.pi)
decay_3d = np.exp(-gamma_3d * time_meep_3d)
reference_3d = decay_3d / (
decay_3d + (1.0 - initial_3d) / initial_3d
)
plt.figure(figsize=(6, 4))
plt.plot(time_meep_3d, population_3d, label="3D Simulation")
plt.plot(
time_meep_3d,
reference_3d,
label="Analytical",
linestyle="--",
)
plt.xlabel("time (Meep units)")
plt.ylabel("excited-state population")
plt.legend()
plt.tight_layout()
plt.show()

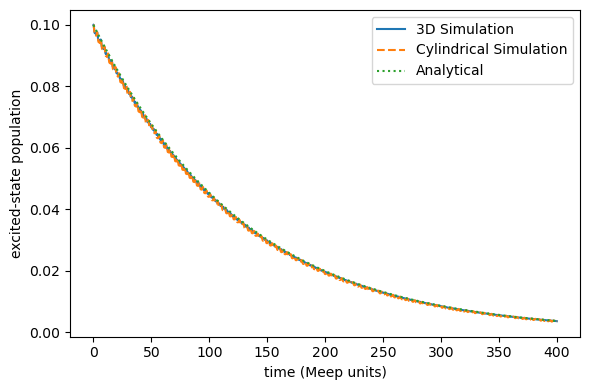

8. Reduce the computational cost with cylindrical coordinates¶
The above 3D EM field with a \(z\)-oriented dipole is rotationally symmetric. Therefore, MaxwellLink can reproduce the above 3D calculation in cylindrical coordinates using the \(m=0\) angular sector.
With cylindrical coordinates, this calculation only requires a 2D \((r,z)\) grid, so the computational cost can be significantly reduced. Note that the public Molecule.center and Molecule.size retain the same Cartesian (x, y, z) definitions as in 3D; only the Meep simulation cell uses native cylindrical (r, \phi, z) coordinates.
[10]:
host_cyl, port_cyl = mxs.get_available_host_port()
hub_cyl = mxl.SocketHub(
host=host_cyl, port=port_cyl, timeout=10.0, latency=1e-5
)
molecule_cyl = mxl.Molecule(
hub=hub_cyl,
# Molecule center and size use the same Cartesian definitions as in 3D
center=mp.Vector3(0, 0, 0),
size=mp.Vector3(1.0, 1.0, 1.0),
sigma=0.1,
# dimensions=mp.CYLINDRICAL is required for the cylindrical simulation
dimensions=mp.CYLINDRICAL,
# It is better to increase resolution to improve cylindrical integral accuracy
resolution=20,
polarization_type="transverse",
)
sim_cyl = mxl.MeepSimulation(
hub=hub_cyl,
molecules=[molecule_cyl],
# Meep cell_size is native (r, phi, z); r=3 adds radial padding
# because cylindrical Meep uses a less accurate curved radial PML
cell_size=mp.Vector3(3, 0, 3),
boundary_layers=[mp.PML(1.0)],
resolution=20,
time_units_fs=0.1,
# dimensions=mp.CYLINDRICAL is required for the cylindrical simulation
dimensions=mp.CYLINDRICAL,
# this m=0 is needed for the cylindrical simulation
m=0
)
print(f"Cylindrical SocketHub listening on {host_cyl}:{port_cyl}")
[Init Molecule] Under socket mode, registered molecule with ID 0
######### MaxwellLink Units Helper #########
MEEP uses its own units system, which is based on the speed of light in vacuum (c=1),
the permittivity of free space (epsilon_0=1), and the permeability of free space (mu_0=1).
To couple MEEP with molecular dynamics, we set [c] = [epsilon_0] = [mu_0] = [hbar] = 1.
By further defining the time unit or length unit, we can fix the units system of MEEP (mu).
- Time [t]: 1 mu = 1.0000E-01 fs = 4.1341E+00 a.u.
- Length [x]: 1 mu = 2.9979E+01 nm
- EM wavelength of 1 mu, angular frequency omega = 2pi mu = 4.1375E+01 eV = 3.3371E+05 cm-1 = 1.5205E+00 a.u.
- Note that sources and dielectrics defined in MEEP use rotational frequency (f=omega/2pi),
- so probabably we need covert 1 eV photon energy to rotational frequency f = 2.4169E-02 mu
- Electric field [E]: 1 mu = 6.6486E+07 V/m = 1.2930E-04 a.u.
Given the simulation resolution = 20,
- FDTD dt = 2.5000E-02 mu (0.5/resolution) = 2.5000E-03 fs
- FDTD dx = 5.0000E-02 mu (1.0/resolution) = 1.4990E+00 nm
Hope this helps!
############################################
Cylindrical SocketHub listening on 127.0.0.1:50108
[11]:
launch_tls_driver_3d(host_cyl, port_cyl)
sim_cyl.run(until=400)
time_au_cyl = np.real(molecule_cyl.extra["time_au"])
time_fs_cyl = time_au_cyl * 0.02418884254
time_meep_cyl = time_fs_cyl / 0.1
population_cyl = np.real(molecule_cyl.extra["Pe"])
# The two resolutions have different time steps, so compare at common times
overlap_3d = (time_meep_3d >= time_meep_cyl[0]) & (
time_meep_3d <= time_meep_cyl[-1]
)
population_cyl_on_3d = np.interp(
time_meep_3d[overlap_3d], time_meep_cyl, population_cyl
)
relative_difference = np.max(
np.abs(population_3d[overlap_3d] - population_cyl_on_3d)
) / initial_3d
print(f"maximum 3D/cylindrical difference: {relative_difference:.3e}")
plt.figure(figsize=(6, 4))
plt.plot(time_meep_3d, population_3d, label="3D Simulation")
plt.plot(
time_meep_cyl,
population_cyl,
label="Cylindrical Simulation",
linestyle="--",
)
plt.plot(
time_meep_3d,
reference_3d,
label="Analytical",
linestyle=":",
)
plt.xlabel("time (Meep units)")
plt.ylabel("excited-state population")
plt.legend()
plt.tight_layout()
plt.show()
Launching TLS driver via subprocess...
/opt/homebrew/Caskroom/miniconda/base/envs/mxl/bin/mxl_driver --model tls --address 127.0.0.1 --port 50108 --param "omega=0.484, mu12=187, orientation=2, pe_initial=0.1"
-----------
Initializing structure...
time for choose_chunkdivision = 4.3e-05 s
Working in Cylindrical dimensions.
Computational cell is 3 x 0 x 3 with resolution 20
time for set_epsilon = 0.001063 s
-----------
[SocketHub] CONNECTED: mol 0 <- 127.0.0.1:50109
[initialization] Time step in atomic units: 0.10335343333750002
[initialization] Assigned a molecular ID: 0
init TLSModel with dt = 0.103353 a.u., molecule ID = 0
[initialization] Finished initialization for molecular ID: 0
Meep progress: 12.5/400.0 = 3.1% done in 4.0s, 124.0s to go
on time step 1772 (time=44.3), 0.00225747 s/step
Meep progress: 56.800000000000004/400.0 = 14.2% done in 8.0s, 48.3s to go
on time step 3528 (time=88.2), 0.00227856 s/step
Meep progress: 100.85000000000001/400.0 = 25.2% done in 12.0s, 35.6s to go
on time step 5316 (time=132.9), 0.00223718 s/step
Meep progress: 145.57500000000002/400.0 = 36.4% done in 16.0s, 28.0s to go
on time step 7098 (time=177.45), 0.00224476 s/step
Meep progress: 190.125/400.0 = 47.5% done in 20.0s, 22.1s to go
on time step 8879 (time=221.975), 0.00224701 s/step
Meep progress: 234.57500000000002/400.0 = 58.6% done in 24.0s, 16.9s to go
on time step 10650 (time=266.25), 0.00225958 s/step
Meep progress: 278.825/400.0 = 69.7% done in 28.0s, 12.2s to go
on time step 12433 (time=310.825), 0.00224384 s/step
Meep progress: 323.27500000000003/400.0 = 80.8% done in 32.0s, 7.6s to go
on time step 14207 (time=355.175), 0.0022551 s/step
Meep progress: 367.925/400.0 = 92.0% done in 36.0s, 3.1s to go
run 0 finished at t = 400.0 (16000 timesteps)
Received STOP, exiting
[SocketHub] DISCONNECTED: mol 0 from 127.0.0.1:50109
maximum 3D/cylindrical difference: 1.293e-02

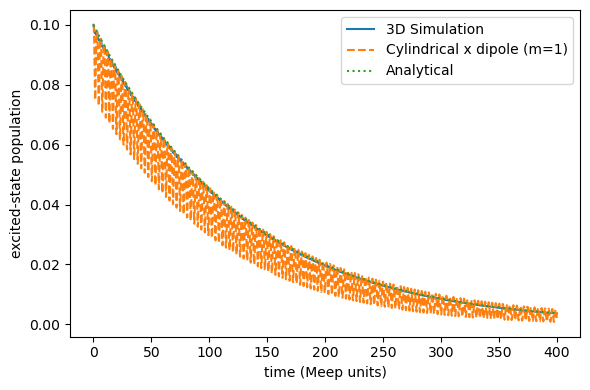

9. Use an \(x\)-oriented TLS in cylindrical coordinates¶
In cylindrical coordinates, the computation also supports the use of \(x\)-polarized or \(y\)-polarized polarization density. However, because the \(x\)- or \(y\)-polarized density exhibits no cylindrical symmetry, we have to set \(m=1\) (or \(m=-1\)).
Additionally, the transverse polarization density is currently not supported in this parameter limit. As a result, the simulated decay dynamics trajectory is not smooth.
[ ]:
host_cyl_x, port_cyl_x = mxs.get_available_host_port()
hub_cyl_x = mxl.SocketHub(
host=host_cyl_x, port=port_cyl_x, timeout=10.0, latency=1e-5
)
molecule_cyl_x = mxl.Molecule(
hub=hub_cyl_x,
center=mp.Vector3(0, 0, 0),
size=mp.Vector3(1.0, 1.0, 1.0),
sigma=0.1,
dimensions=mp.CYLINDRICAL,
resolution=20,
)
sim_cyl_x = mxl.MeepSimulation(
hub=hub_cyl_x,
molecules=[molecule_cyl_x],
cell_size=mp.Vector3(3, 0, 3),
boundary_layers=[mp.PML(1.0)],
resolution=20,
time_units_fs=0.1,
dimensions=mp.CYLINDRICAL,
m=1,
)
print(f"Cylindrical x-dipole SocketHub listening on {host_cyl_x}:{port_cyl_x}")
def launch_tls_driver_cyl_x(host, port, sleep_time=0.5):
executable = shutil.which("mxl_driver")
if executable is None:
raise RuntimeError("mxl_driver executable not found in PATH.")
cmd = (
f"{executable} --model tls --address {host} --port {port}"
f' --param "omega=0.484, mu12=187, orientation=0, pe_initial=0.1"'
)
print("Launching x-oriented TLS driver via subprocess...")
print(" " + cmd)
proc = subprocess.Popen(shlex.split(cmd))
time.sleep(sleep_time)
return proc
launch_tls_driver_cyl_x(host_cyl_x, port_cyl_x)
sim_cyl_x.run(until=400)
[Init Molecule] Under socket mode, registered molecule with ID 0
######### MaxwellLink Units Helper #########
MEEP uses its own units system, which is based on the speed of light in vacuum (c=1),
the permittivity of free space (epsilon_0=1), and the permeability of free space (mu_0=1).
To couple MEEP with molecular dynamics, we set [c] = [epsilon_0] = [mu_0] = [hbar] = 1.
By further defining the time unit or length unit, we can fix the units system of MEEP (mu).
- Time [t]: 1 mu = 1.0000E-01 fs = 4.1341E+00 a.u.
- Length [x]: 1 mu = 2.9979E+01 nm
- EM wavelength of 1 mu, angular frequency omega = 2pi mu = 4.1375E+01 eV = 3.3371E+05 cm-1 = 1.5205E+00 a.u.
- Note that sources and dielectrics defined in MEEP use rotational frequency (f=omega/2pi),
- so probabably we need covert 1 eV photon energy to rotational frequency f = 2.4169E-02 mu
- Electric field [E]: 1 mu = 6.6486E+07 V/m = 1.2930E-04 a.u.
Given the simulation resolution = 20,
- FDTD dt = 2.5000E-02 mu (0.5/resolution) = 2.5000E-03 fs
- FDTD dx = 5.0000E-02 mu (1.0/resolution) = 1.4990E+00 nm
Hope this helps!
############################################
Cylindrical x-dipole SocketHub listening on 127.0.0.1:50117
Launching x-oriented TLS driver via subprocess...
/opt/homebrew/Caskroom/miniconda/base/envs/mxl/bin/mxl_driver --model tls --address 127.0.0.1 --port 50117 --param "omega=0.484, mu12=187, orientation=0, pe_initial=0.1"
-----------
Initializing structure...
time for choose_chunkdivision = 2.3e-05 s
Working in Cylindrical dimensions.
Computational cell is 3 x 0 x 3 with resolution 20
time for set_epsilon = 0.001041 s
-----------
Meep: using complex fields.
[initialization] Time step in atomic units: 0.10335343333750002
[initialization] Assigned a molecular ID: 0
init TLSModel with dt = 0.103353 a.u., molecule ID = 0
[initialization] Finished initialization for molecular ID: 0
[SocketHub] CONNECTED: mol 0 <- 127.0.0.1:50118
Meep progress: 281.975/400.0 = 70.5% done in 4.0s, 1.7s to go
on time step 11283 (time=282.075), 0.000354519 s/step
run 0 finished at t = 400.0 (16000 timesteps)
Received STOP, exiting
[SocketHub] DISCONNECTED: mol 0 from 127.0.0.1:50118
[ ]:
time_au_cyl_x = np.real(molecule_cyl_x.extra["time_au"])
time_fs_cyl_x = time_au_cyl_x * 0.02418884254
time_meep_cyl_x = time_fs_cyl_x / 0.1
population_cyl_x = np.real(molecule_cyl_x.extra["Pe"])
# Compare the m=1 result with the existing 3D population at common times
overlap_3d_cyl_x = (time_meep_3d >= time_meep_cyl_x[0]) & (
time_meep_3d <= time_meep_cyl_x[-1]
)
population_cyl_x_on_3d = np.interp(
time_meep_3d[overlap_3d_cyl_x], time_meep_cyl_x, population_cyl_x
)
plt.figure(figsize=(6, 4))
plt.plot(time_meep_3d, population_3d, label="3D Simulation")
plt.plot(
time_meep_cyl_x,
population_cyl_x,
label="Cylindrical x dipole (m=1)",
linestyle="--",
)
plt.plot(
time_meep_3d,
reference_3d,
label="Analytical",
linestyle=":",
)
plt.xlabel("time (Meep units)")
plt.ylabel("excited-state population")
plt.legend()
plt.tight_layout()
plt.show()
maximum 3D/cylindrical x-dipole difference: 2.245e-01
